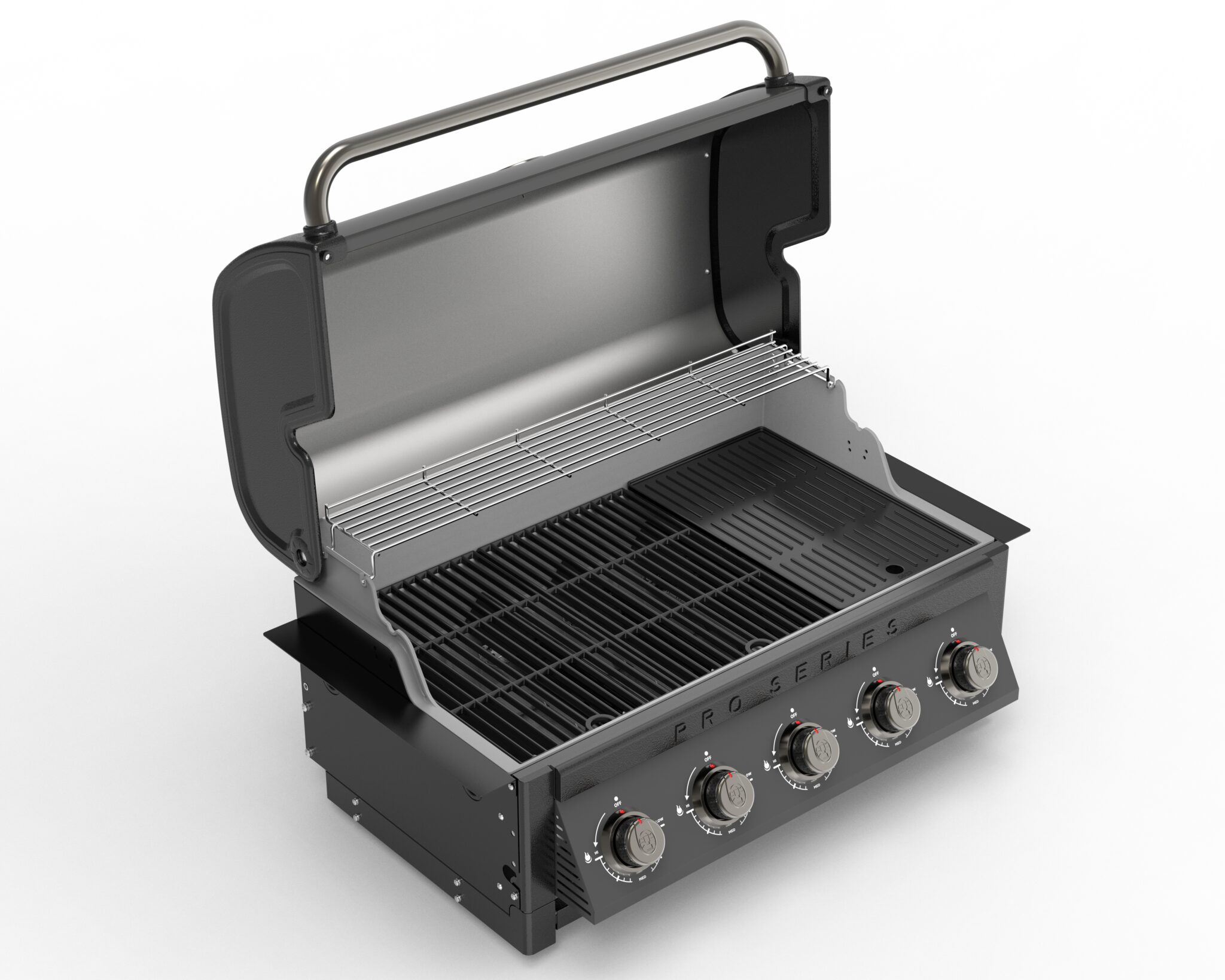

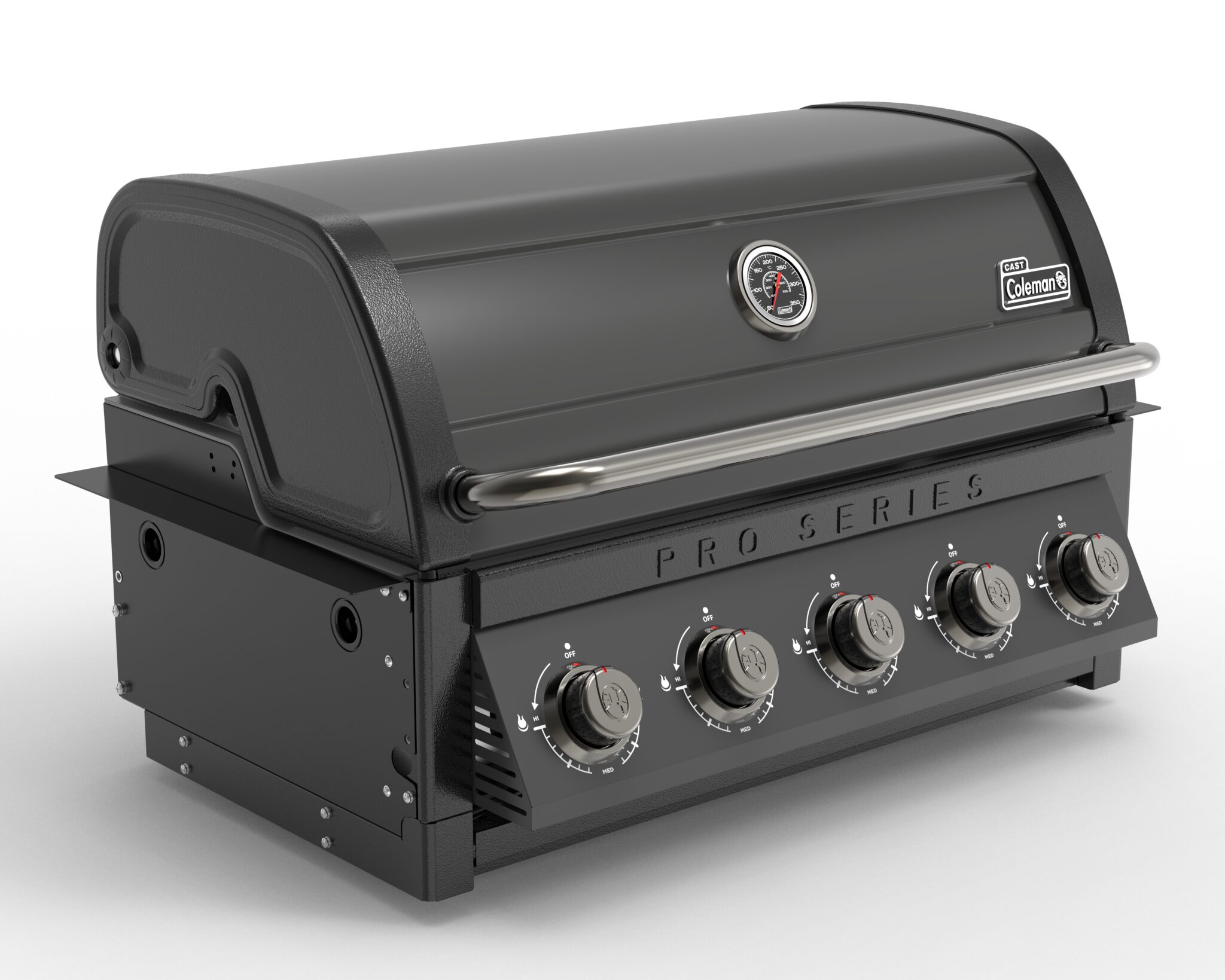

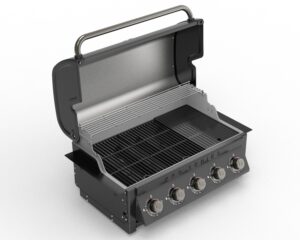

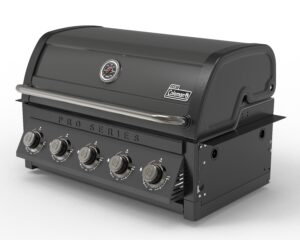

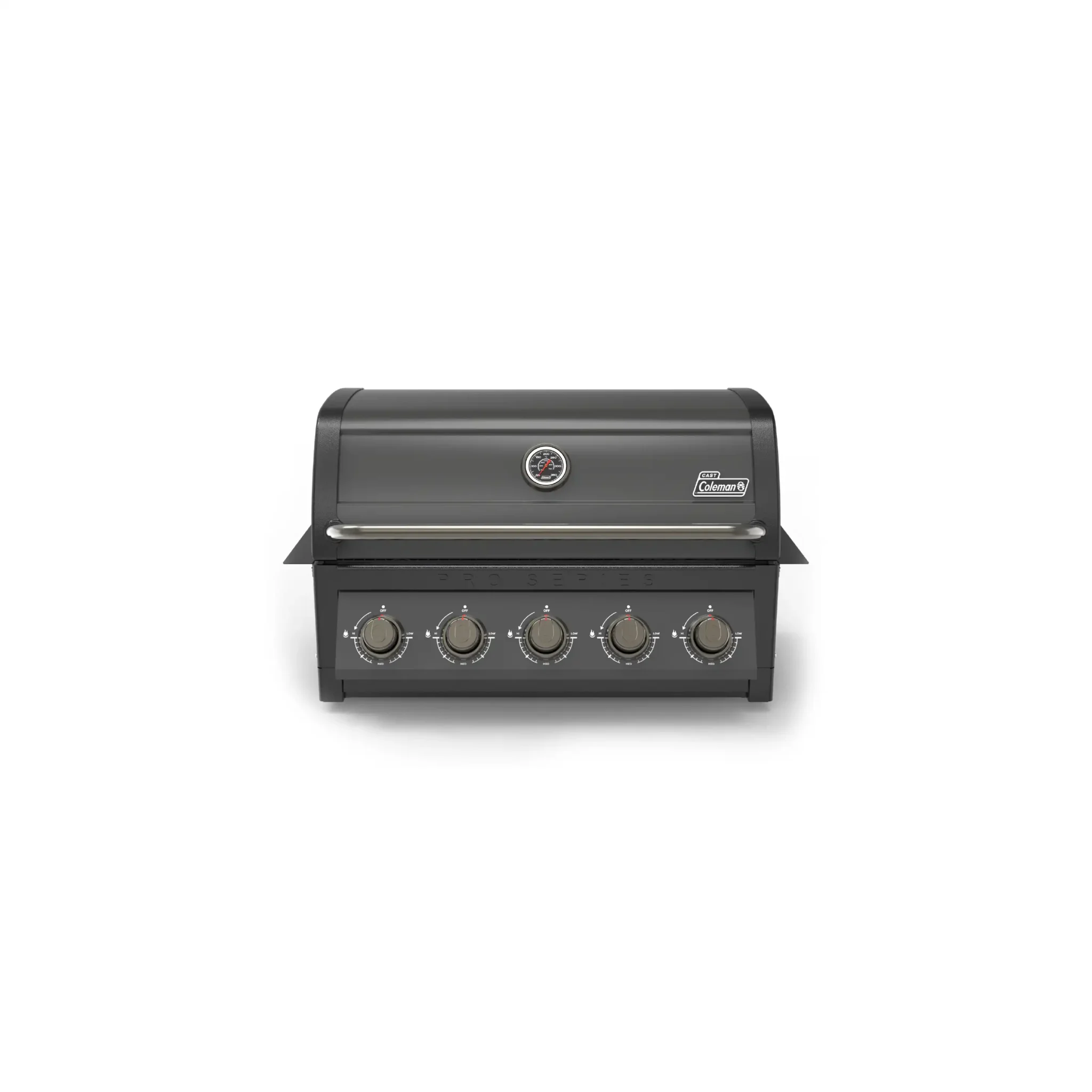

Coleman® Pro Series 5-Burner Built-In BBQ — Matte Black

The Coleman® Pro Series 5-Burner Built-In BBQ delivers professional-grade performance, premium construction, and a modern matte-black finish designed for any high-end outdoor kitchen.

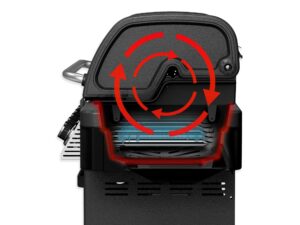

Built with a die-cast aluminium burner box, double-walled porcelain-enamel lid, and heavy-duty porcelain-enamel coated cast-iron cooking grates, this built-in unit offers outstanding heat retention and consistent, even cooking across its spacious 5-burner layout.

Upgraded with 304 stainless-steel heavy-gauge main burners and 304 stainless-steel heavy-gauge flame tamers, it is engineered for exceptional durability, corrosion resistance, and long-lasting performance — perfectly suited for harsh Australian conditions.

With a total heat output of 75 MJ/h, the Pro Series Built-In BBQ is ideal for grilling, searing, roasting, and entertaining guests with confidence and precision. This model is also fully compatible with Natural Gas (NG) when using an approved conversion kit (sold separately).

As standard, the Pro Series Built-In also includes a premium 1/3 double-sided hot plate, giving you both a ridged grilling surface and a smooth flat cooking surface in one. This versatile plate covers roughly one-third of the cooking area and allows seamless switching between searing, frying, and delicate cooking — without needing any additional accessories.

The built-in design integrates seamlessly into custom cabinetry, and outdoor kitchens.

Durable, stylish, and built to last — the Coleman Pro Series Built-In makes a premium centerpiece for any outdoor entertaining space.

• 5174 cm² total cooking surface
  • Primary: 4129 cm²
  • Secondary: 1045 cm²

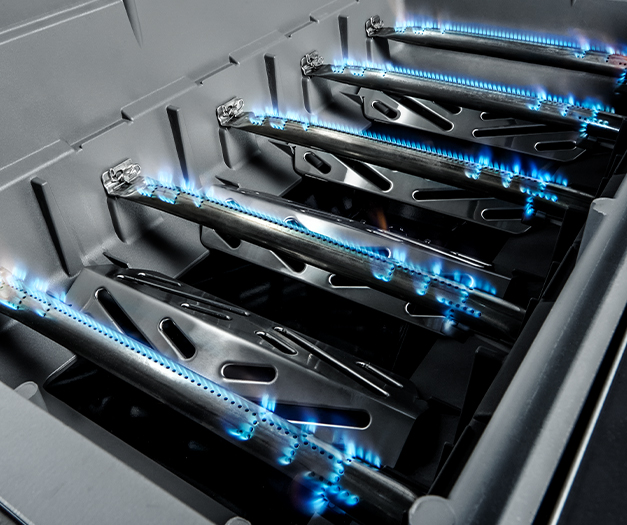

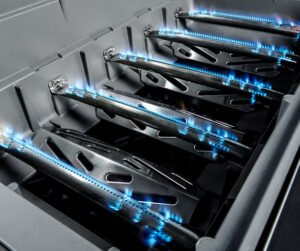

• 5 × 304 Stainless Steel Heavy-Gauge Main Burners
  • Total output: 75 MJ/h

• No wok burner (built-in version)

• Die-cast aluminium burner box with exterior double-wall insulation

• Double-walled matte black porcelain-enamel lid with die-cast aluminium end caps

• Porcelain-coated cast-iron cooking grates for even heat and perfect searing

• 304 heavy-gauge stainless-steel flame tamers for improved heat distribution & reduced flare-ups

• Weatherproof Piezo ignition system

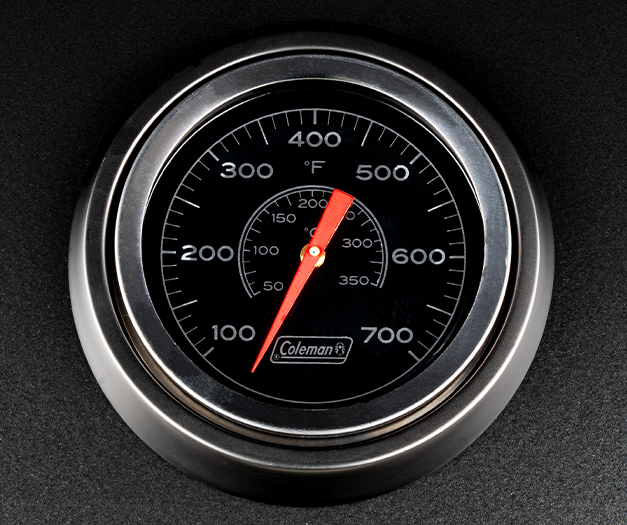

• Large, easy-read lid-mounted thermometer

• Large rear pull-out deep-clean tray

• Matte black finish with black-nickel accents

• Fully compatible with Coleman outdoor kitchen modules

• Natural Gas

• 5-year warranty

Weights

• Assembled Weight: 50 kg (unchanged from burner-box version)
• Package Weight: 55 kg

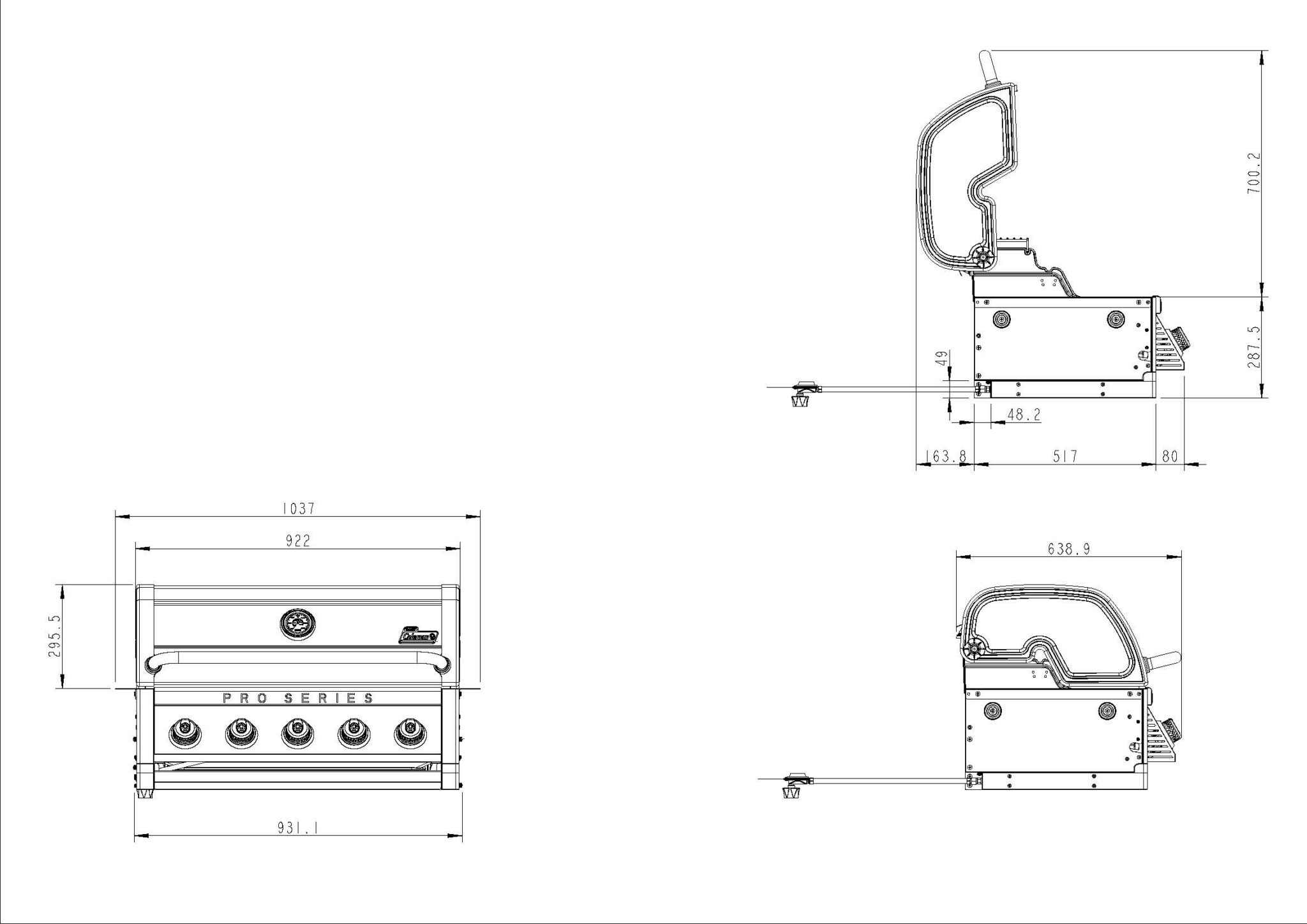

Assembled Dimensions (Built-In)

• Width: 1037 mm (overall), 922 mm (face of lid area)

• Depth (lid closed): 638.9 mm

• Height (lid closed): 295.5 mm to top of front lid

• Height (lid open): 700.2 mm (top of hood open)

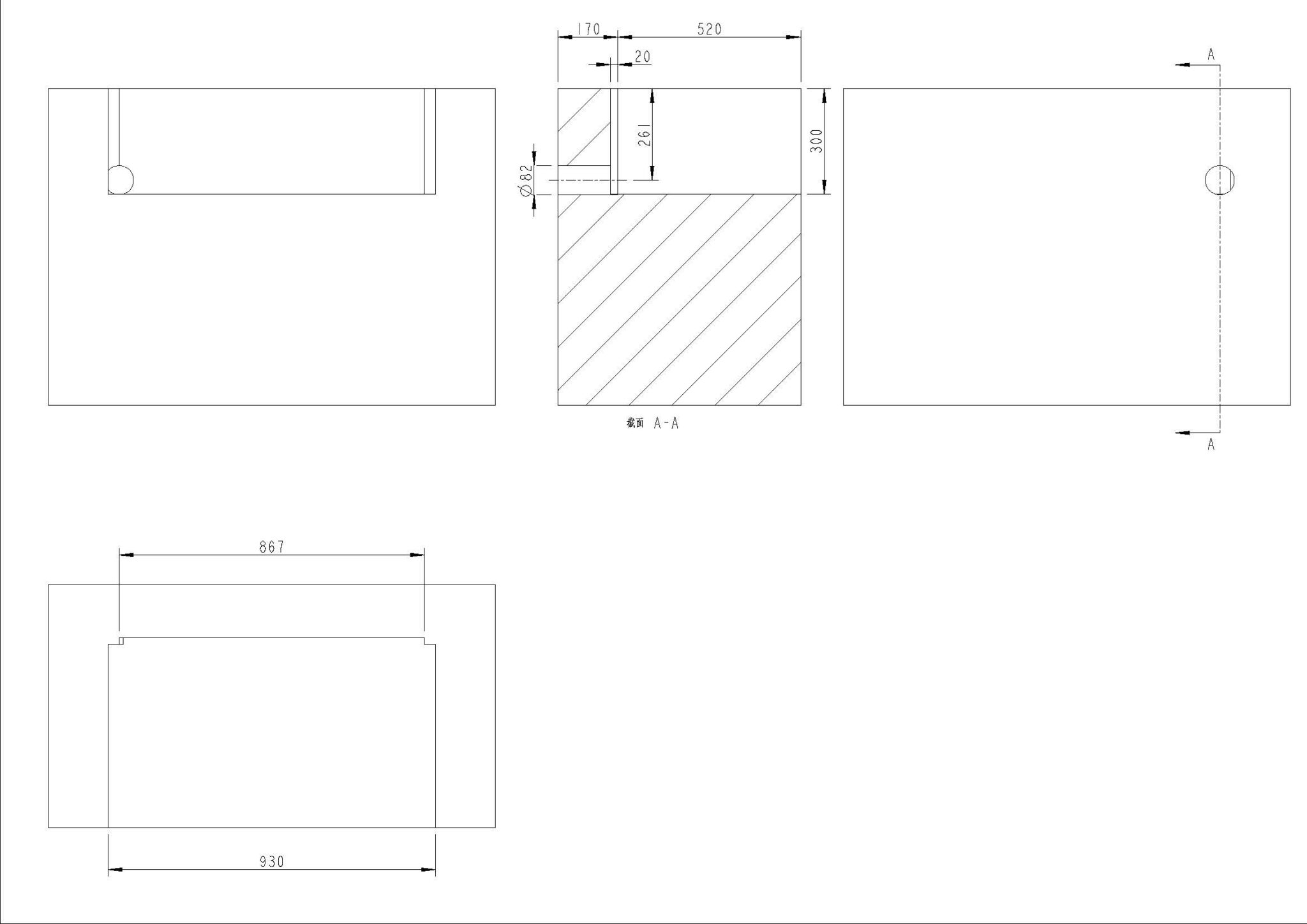

Cut-Out Dimensions

(Refer to attached drawings for full details.)

• Cut-out width: 867 mm

• Overall bench opening width: 930 mm

• Cut-out depth: 520 mm

• Front setback before cut-out starts: 170 mm

• Recommended cavity height: 300 mm

• Service hole: Ø82 mm

• Benchtop thickness shown: 20 mm
