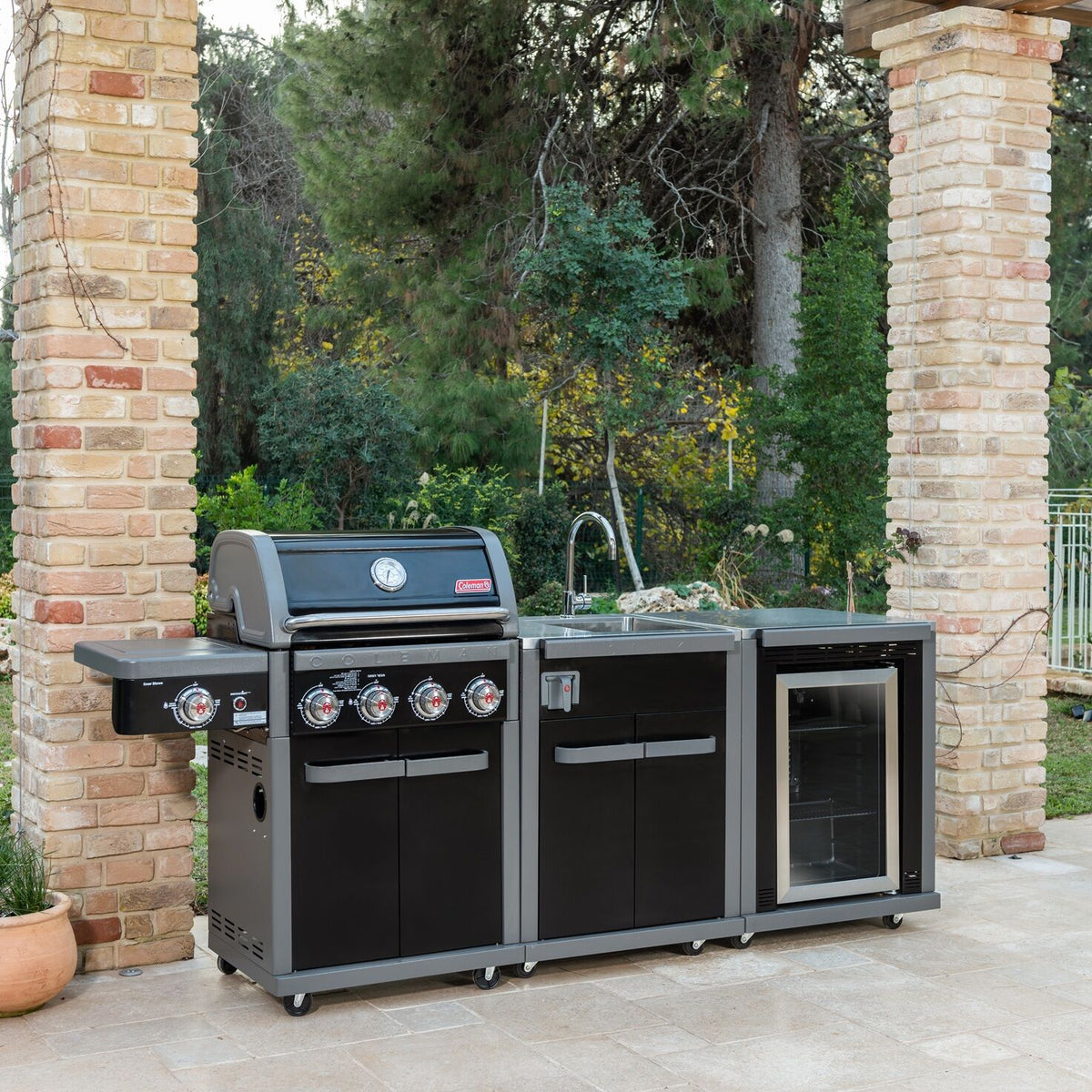

Coleman® Revolution™ 4 Burner Kitchen with Sink and Fridge Modules

The Coleman Revolution 4-Burner Barbecue features patented Flare-Free Technology that captures and removes 75% more grease, eliminating flare-ups and hot spots to ensure even cooking. Double-stacked cooking grates offer twice the heat retention while the Instastart ignition provides reliable lighting in harsh environments.

• Double-layer hood – enables better heat retention and versatile cooking methods.
• Heavy-duty construction – crafted from premium materials for long-lasting reliability.
• Side burner – provides added cooking versatility.
• Flare-Free Technology – captures and removes grease to eliminate flare-ups and hot spots.
• One-third hotplate and two-thirds grill grate – provides flexibility for various cooking styles.
• Double-sided hotplate – one side smooth and flat for delicate cooking, the other ridged for grilling.
• Modular design – seamlessly connects to Coleman's outdoor kitchen modular unit for a complete cooking experience.

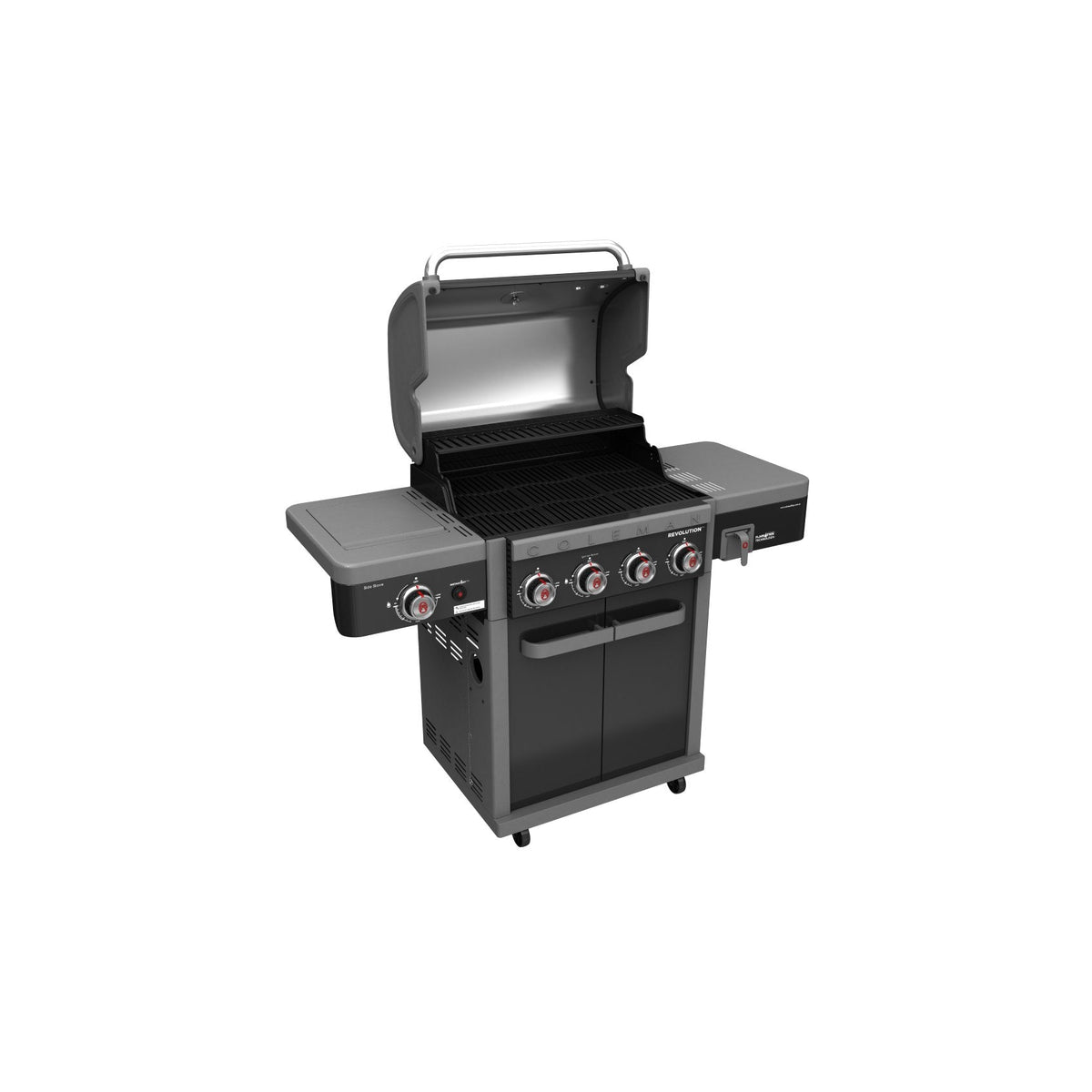

Revolution 4 Burner BBQ specifications

• Main cooking surface area: 3097 cm² (D 46.5 x W 66.6 cm)
• Secondary cooking surface area: 924 cm² (D 14.7 x W 62.8 cm)
• Assembled dimensions: W 143.4 x D 60.7 x H 121.8 cm
• Assembled weight: 73.3 kg
• Four stainless steel tube burners: 10.3 MJ each
• Side stove: 14.3 MJ
• Total heat output: 55.5 MJ
• Package dimensions: L 90.5 x W 76.5 x H 62 cm
• Package weight: 86.6 kg

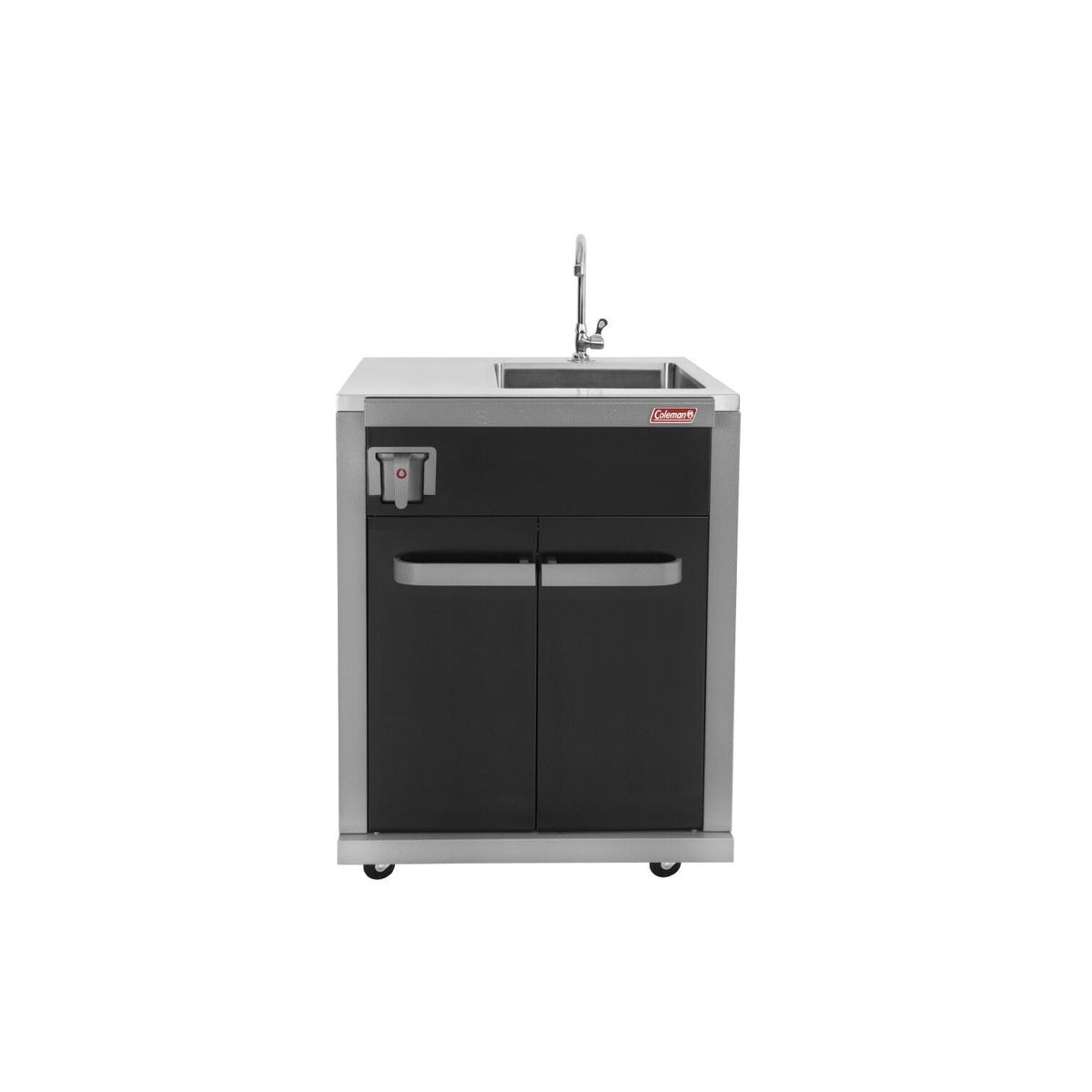

Sink Module specifications

• Sink dimensions: W 37 × D 45.5 × H 17.5 cm
• Module assembled dimensions: W 69.5 × D 70.3 × H 121.4 cm
• Module weight: 34.83 kg
• Package dimensions: L 72.5 × W 81 × H 33 cm
• Package weight: 42.06 kg
• Warranty: 5 years limited warranty

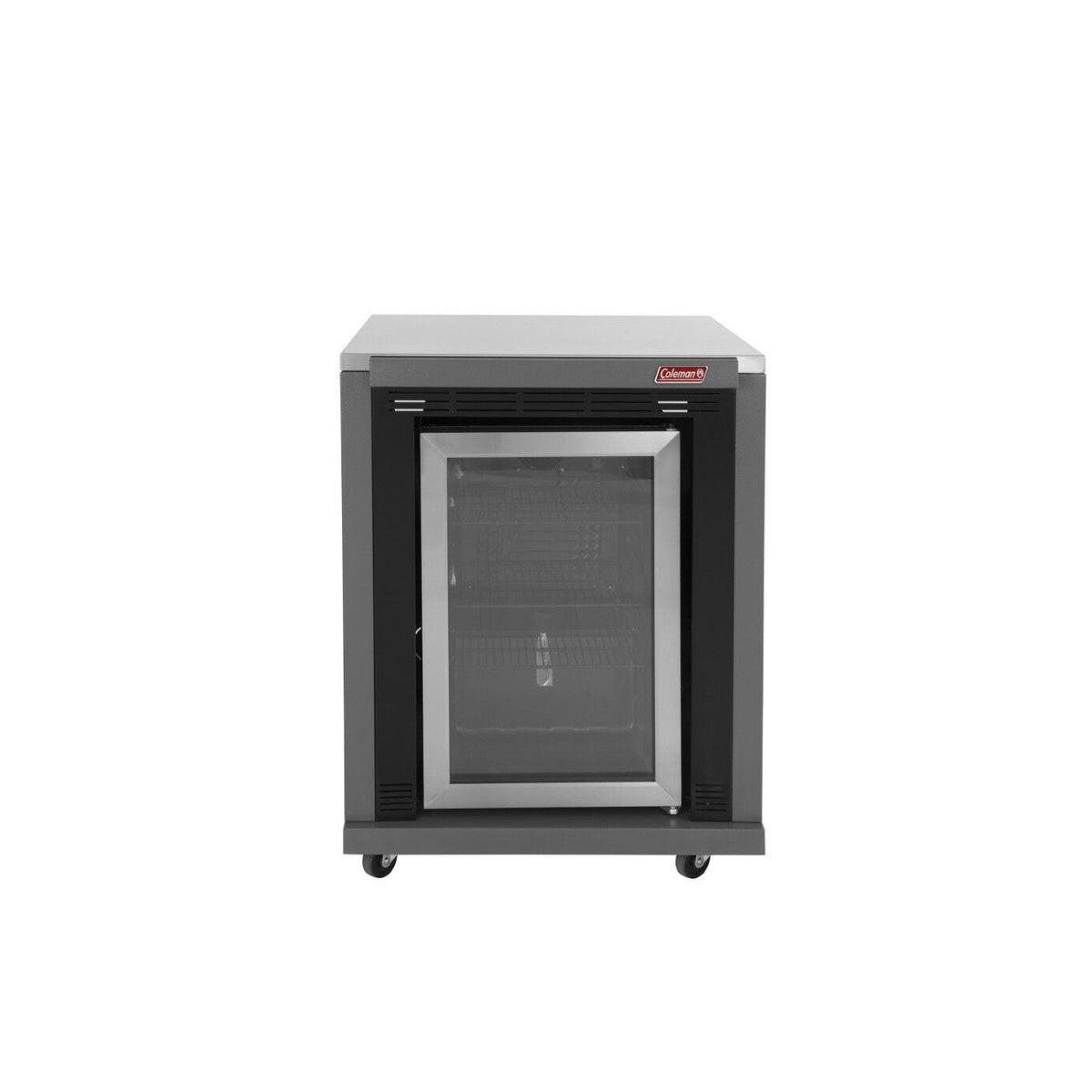

Fridge Module specifications

• Assembled dimensions: W 69.5 x D 70.3 x H 92.4 cm
• Weight (without fridge): 25.94 kg
• Package dimensions: L 83.5 x W 81 x H 20 cm
• Package weight (without fridge): 27.78 kg
• Warranty: 5 year limited warranty on module

Heller 70L Beverage Cooler specifications

• Capacity: 70L
• Temperature range: 0 °C–10 °C
• Temperature control: Mechanical
• Cooling gas: R600a (environmentally friendly)
• Dimensions: W430 x D480 x H690 mm
• Shelves: 3 x adjustable wire shelves
• Warranty: 24 months
